Base Kit
Regular price
$10,999.00
Our base kit is the ground level for what we offer- keeping it simple so you can make it what you want and need. This kit includes hot and cold side piping. The hot side is constructed with 304 stainless steel and the manifolds are constructed from 1 5/8" cnc mandrel bent tubing. Each turbo kit is made in America by our partners at Kooks Headers. Every kit is paired with a set of HPT turbos available in multiple size options.
Each turbo comes with a 2 year warranty and can be upgraded to a 4 year warranty. The intercooler is a Shearer Fabrication 5.5" core designed and produced specifically for our kits. Wastegates and the blow off valve are not included with the base kit and the kit is only compatible with TiAL or VS Racing gates and blowoff valve.

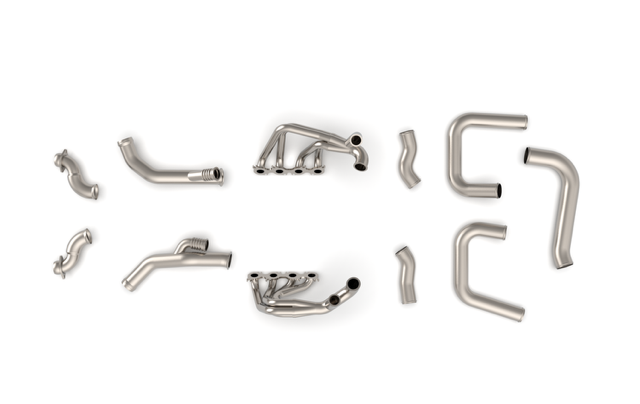

Each Kit Includes the following

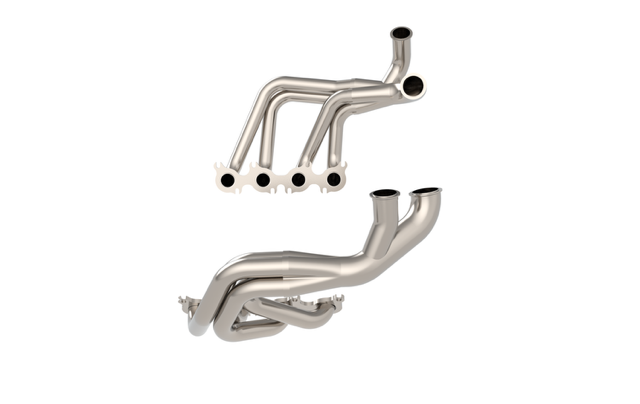

- Stainless steel tubular manifolds manufactured by Kooks
- manifold bolt sets
- Stainless steel 3" downpipes with O2 bungs and a third O2 bung in drivers side pipe for additional options
- Stainless Steel Downpipe connection pipe Stepped 3-2.5” that bolts directly to factory exhaust (Kooks Y pipe is optional)
- Choice of HPT turbos
- turbo support brackets
- -10AN turbo drain flanges

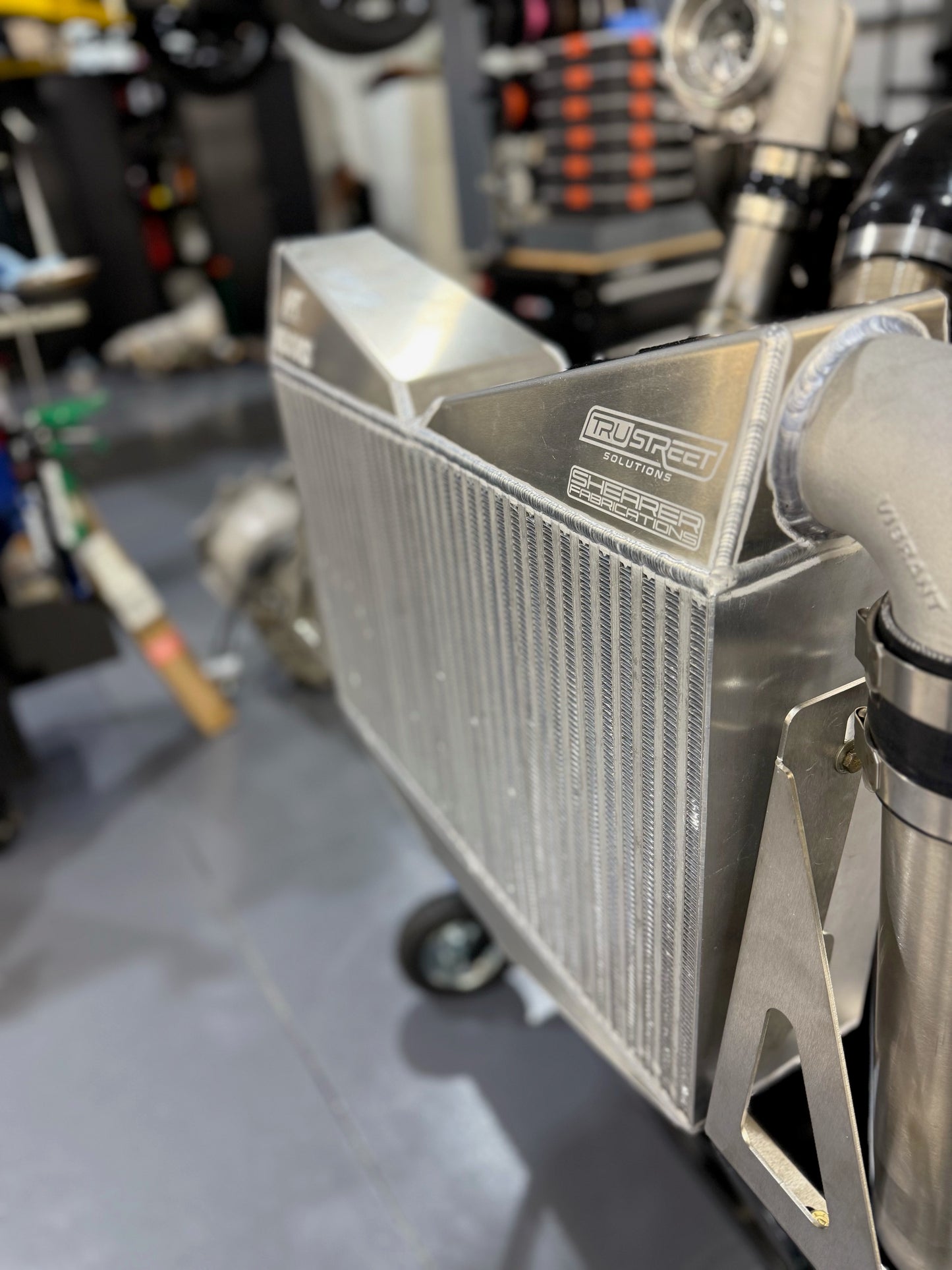

- Shearer Fabrication 5.5" intercooler with BOV flange installed
- intercooler mounting brackets and hardware

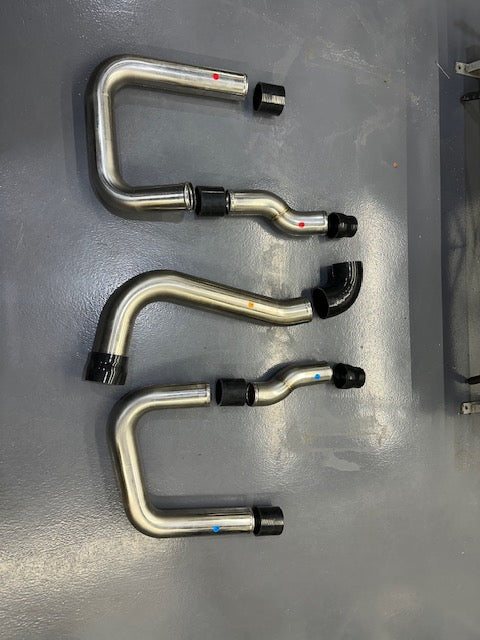

- 3" stainless steel intercooler piping from turbo(s) to intercooler
- 3.5" stainless steel intercooler charge pipe to throttle body
- All silicone couplers in black that are needed for cold side piping
- Stainless steel T-bolt clamps for all coldside couplers
- AC line if truck is a 21+ model
- Battery mounting bracket and tray for 18-20 F150
Kooks Headers & Exhaust offers a limited lifetime warranty, covering material and workmanship. Please click HERE for more details.
